Configuration
The configuration page is admin only, and allows the full customization of the application.
Some of the links of the this page might not be visible for non-POLE STAR agent, as it redirect to private section
1 - Application tab
1 Application name
2 Logo to display (url from S3, currently only works with logos made available on S3 by an administrator, check this page for further informations),
3 Preview of the application logo
4 Application colors selector
5 Fetch url also used in property type and in naoflow tag asset association. Check this page to get a better understanding of the tool.
6 Encryption key, that allows to crypt property type values with code = “trackable_name” (check this page to have further informations on how this feature work)
7 Simulation tools, that can be used in locations page, location history page and journey tracking page, simulating data for demo. (check this page for simulations guidelines)
2 Logo to display (url from S3, currently only works with logos made available on S3 by an administrator, check this page for further informations),
3 Preview of the application logo
4 Application colors selector
5 Fetch url also used in property type and in naoflow tag asset association. Check this page to get a better understanding of the tool.
6 Encryption key, that allows to crypt property type values with code = “trackable_name” (check this page to have further informations on how this feature work)
7 Simulation tools, that can be used in locations page, location history page and journey tracking page, simulating data for demo. (check this page for simulations guidelines)

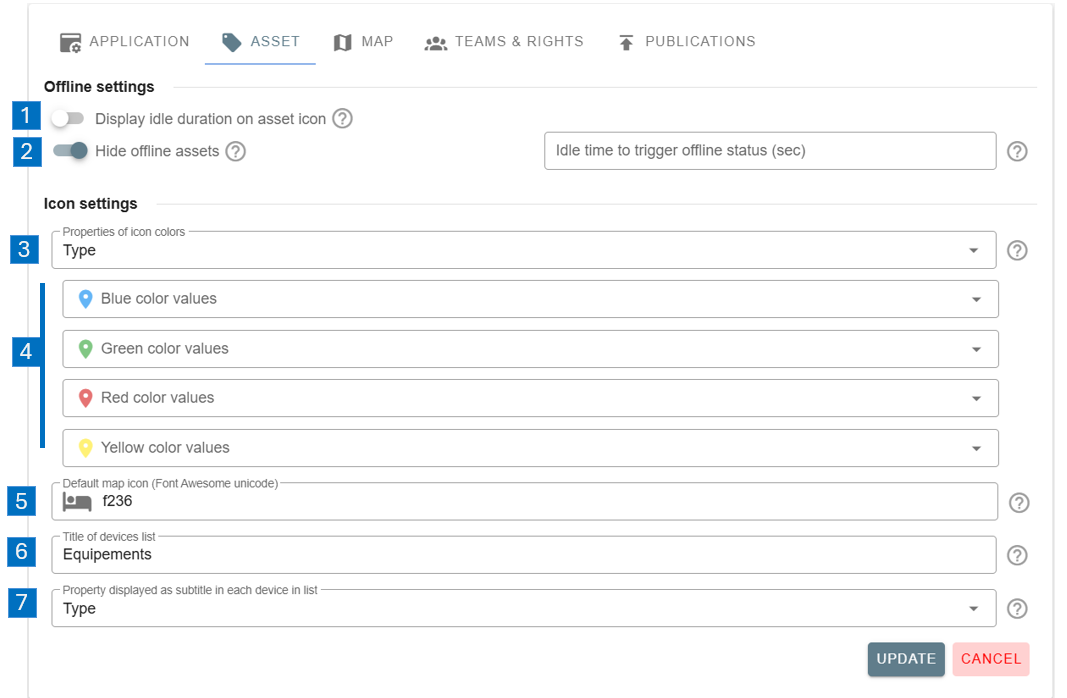

2 - Asset tab
1 Display the black bullet on the top right of the map icon, when a trackable is not moving for a certain duration.
2 Hide the assets that are considered idle, that has not been receiving message for a certain duration
3 Work with pair with the option 2 to determine the "offline timer"
4 Property that will change tag color, depending on tag values and values selected in the color field
5 Values that will change tag's color on the map : the tag will change its color whenever it matches the value
6 Font Awesome UNICODE, displayed as icon of devices on the map. All available icon can be seen on fontawesome website.
7 Name of the title of the devices list
8 Property data from tag that will be displayed as subtitle data in devices list
7 Name of the title of the devices list
8 Property data from tag that will be displayed as subtitle data in devices list

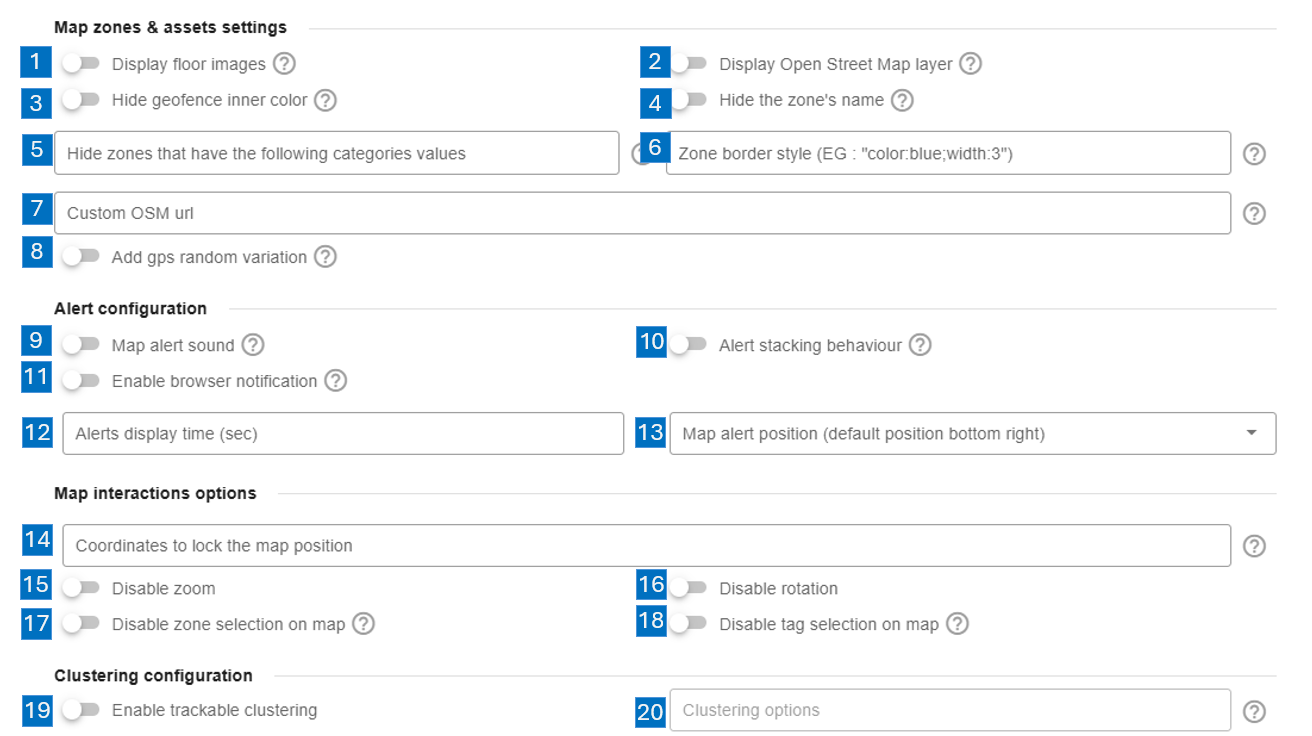

3 - Map tab
1 Display the floor image on the map
2 Display the OSM on the map, below the floor images
3 Hide the inner color of the geofences, showing only it's outline
4 Hide zone name within it's area
4 Hide zone name within it's area
5 Hide zones that matches the values written in the field.
6 Allow zone border customization by adding values as follows : "color:blue;width:3"
7 Custom OSM map url
8 Add random GPS variation to every location on map in order to avoid overlapping
9 Enable geofence map sound whenever alert triggers
10 Alert stacking behaviour : each alert stack on each on the previous one, or only the last one is displayed
11 Enable browser notification when an alert is trigger and window is minimized
11 Enable browser notification when an alert is trigger and window is minimized
12 The time the geofences alert will stay visible before self-closing. If 0 is set, alert notification will stay open until manually cl
13 Alert position on map : top - left/center/right, center - left/center/right, bottom - left/center/right
14 Lock the position of the map view, by typing coordinates format values : [lon, lat, zoom]
15 Disable zoom, making user unable to zoom, on mobile or desktop
16 Disable rotation, making user unable to rotate map (shift + alt + click)
17 Disabled zone selection on map
18 Disabled tag selection on map
19 Enable asset clustering, making the map visually smoother and also reducing browser freeze
20 Clustering option : distance:35;color:yellow;textColor:black;textBorderColor:white;textBorderWidth:5

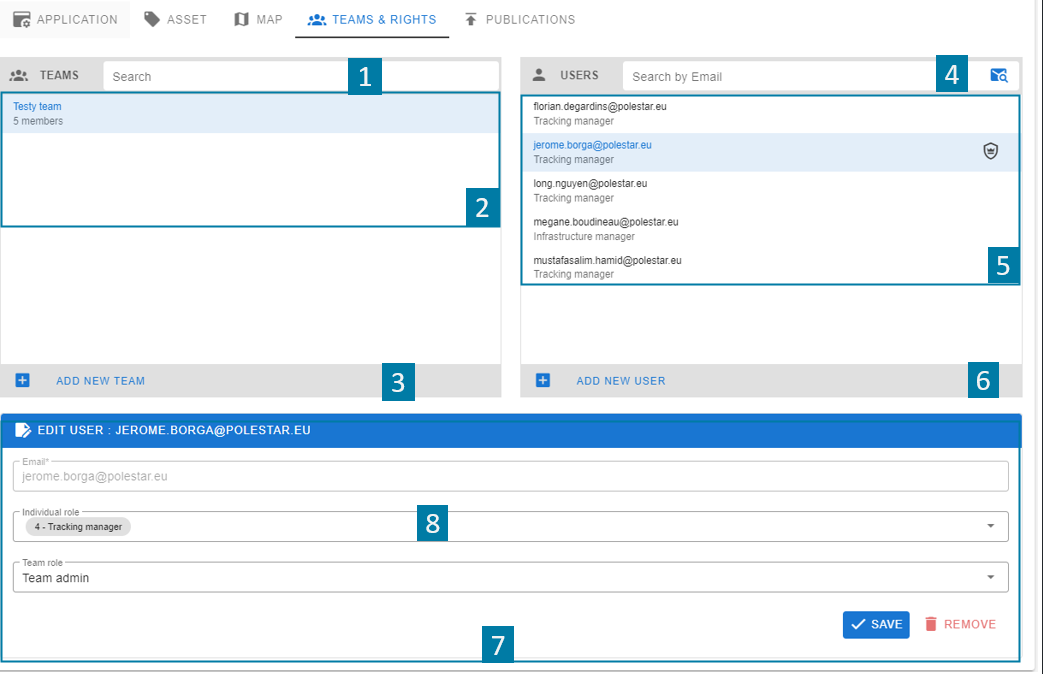

4 - Team & rights tab
1 Filter field for teams
2 Teams list
3 Add new team button
4 Filter field for team users
5 Teams users list
6 Add new user for selected team
7 Management card or current selection : the card will adapt to current action you are doing : create or edit team or user.
8 For example, if you select a team user, it will display a user role selector.
2 Teams list
3 Add new team button
4 Filter field for team users
5 Teams users list
6 Add new user for selected team
7 Management card or current selection : the card will adapt to current action you are doing : create or edit team or user.
8 For example, if you select a team user, it will display a user role selector.
5 - Publications tab
wip
