Device count overview

Info
This page provides real-time tag counts for each zone and integrates with NAO Cloud geofences and geonotifications.

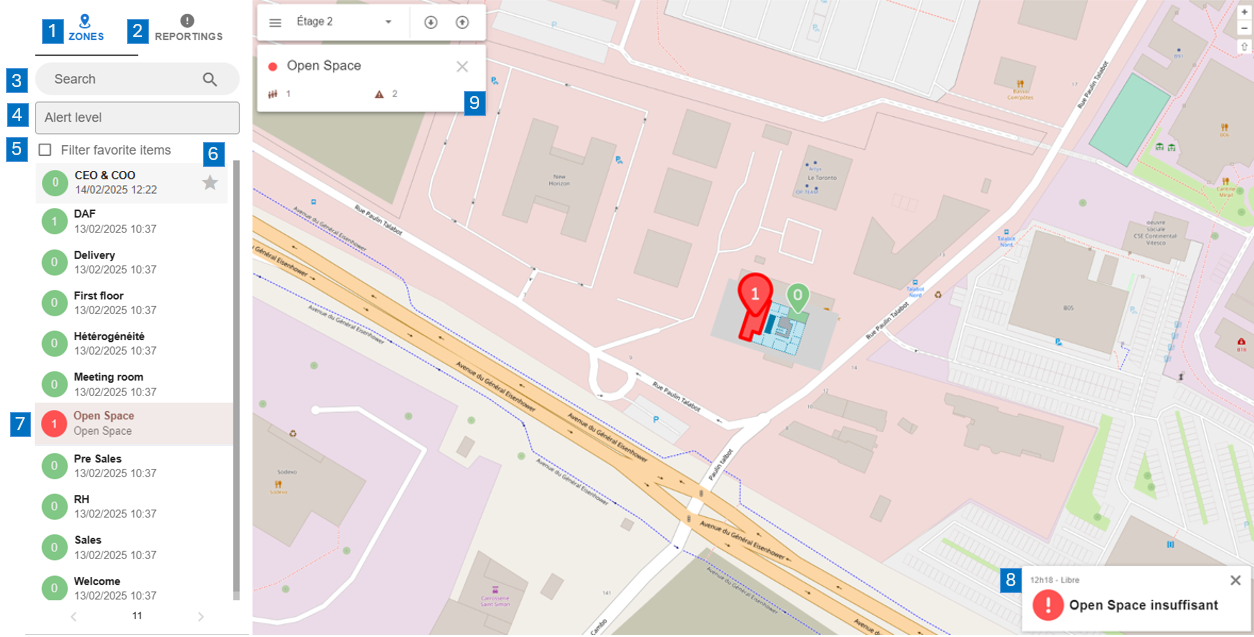

Tab  1  lists the zones available in the application, tab  2  displays any currently active alerts. The list below dynamically updates to show the content of the selected tab

List filtering


This list can be filtered in three ways:
- It is possible to type text in the search field  3  , which will filter the list, displaying only the items whose name matches the value
- List can also be filtered by alert level  4 , "alert" : red, "warning" : orange, "notice", yellow, or "info": green.
Note that non-existing alert value among the alert will not be available as value in the selector (EG : if there is no zone with alert level, the "alert" value will not be shown in the drop down)
- Zone can be filtered by creating a list of favorite zone  5  . In order to do so, you will have to add any zone in favorite, by hovering it with your cursor, and clicking on the star icon  6 . If the star icon is filled, it means this element has been added as favorite in the local storage of your web browser, which also mean that the favorite list is browser-dependent. To remove an item from your favorites, simply click the star again. It will then appear outlined.
Note that clicking on the filter checkbox without any element added in favorite list won't have any effect.
Info
NB : Feel free to mix and match the fillers to achieve the precise results you want.

Counting and alerts

The colored circle  7  next to each item in list reflects the current alert level for the corresponding zone. This level (notice, warn, or alert) is determined by thresholds configured on the NAOCLOUD platform."
Alerts  8  are triggered in real-time, displaying current zone threshold exceedances and related zone/alert information. Clicking an alert selects the corresponding zone on the map and opens the detail panel  9
