This article explains how to assign and apply a configuration to a Tag through NAO Cloud and finalize the process with the NAO Logger app.

Step 1 – Assign a Mission in NAO Cloud

1. Log in to NAO Cloud.

2. Go to Tag Tracking > Tracked Device

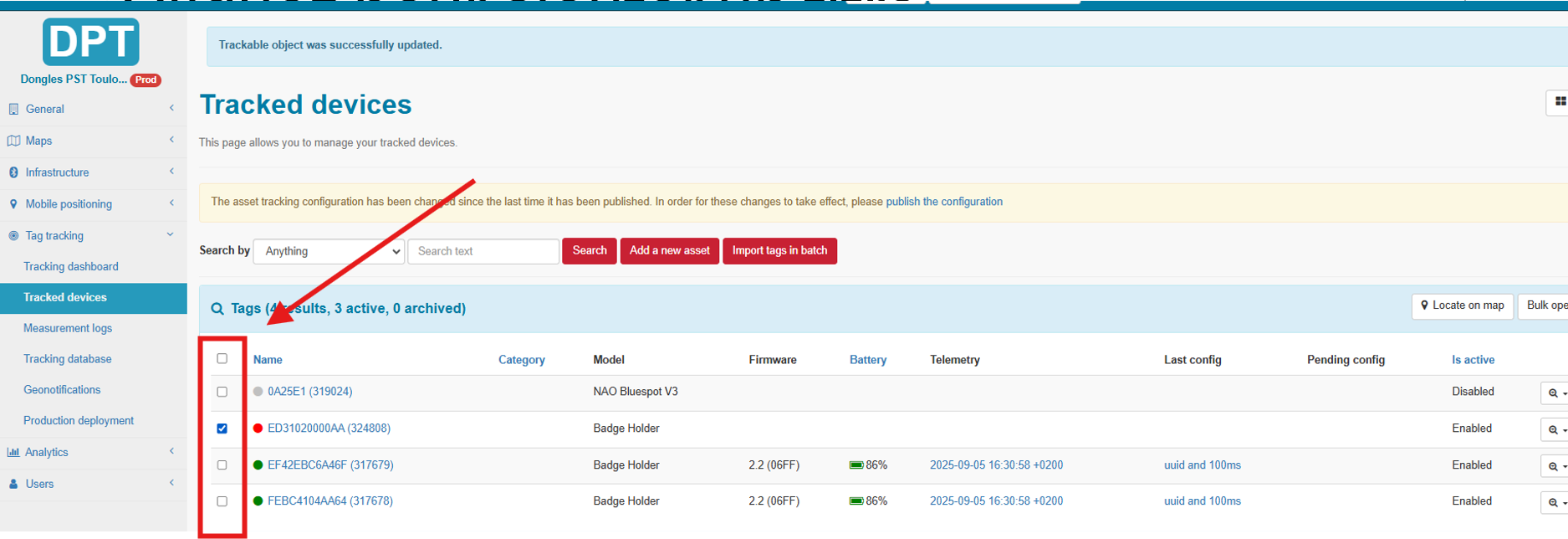

1. Select the tag(s) you want to update, then click Bulk Operation.

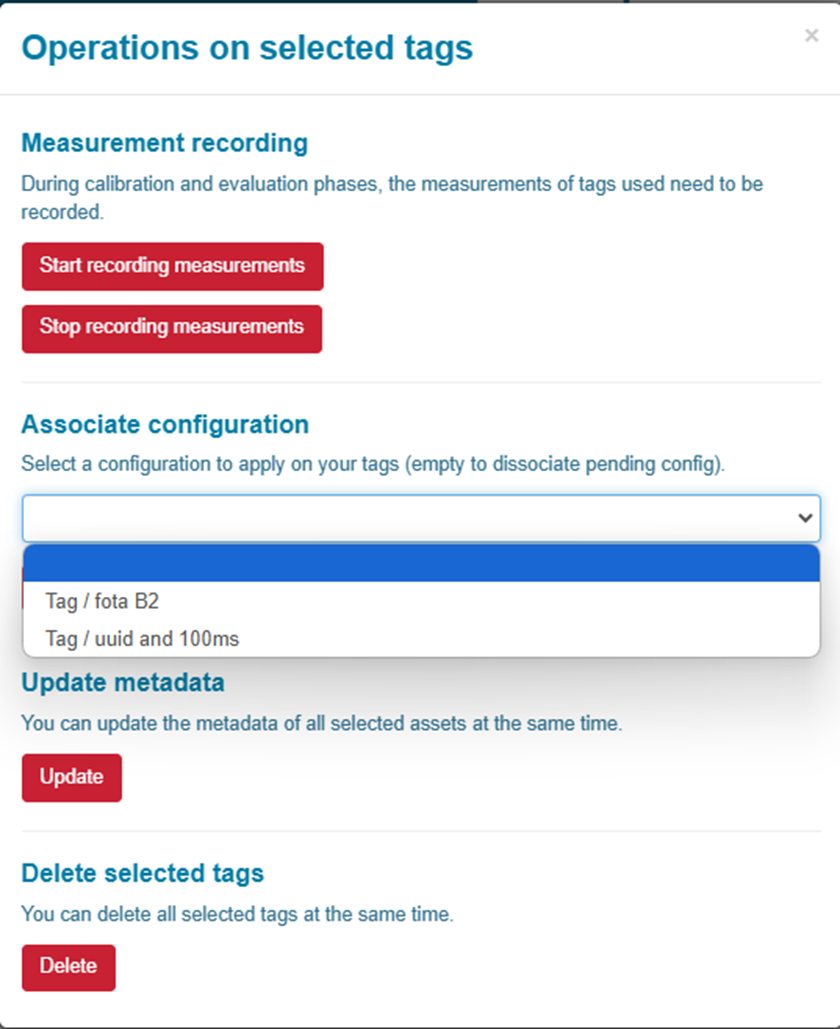

1. Choose the configuration you want to apply (e.g., Tag/fota B2).

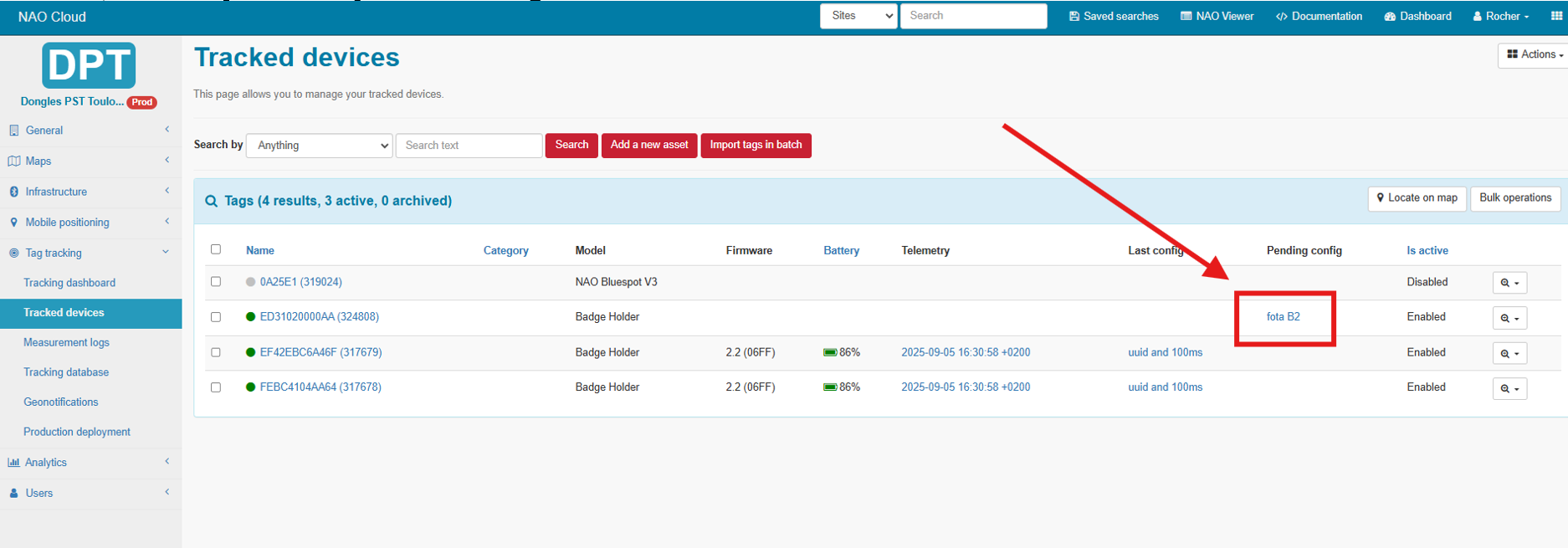

1. The selected configuration will now appear in Pending status.

Step 2 – Apply the Configuration with NAO Logger

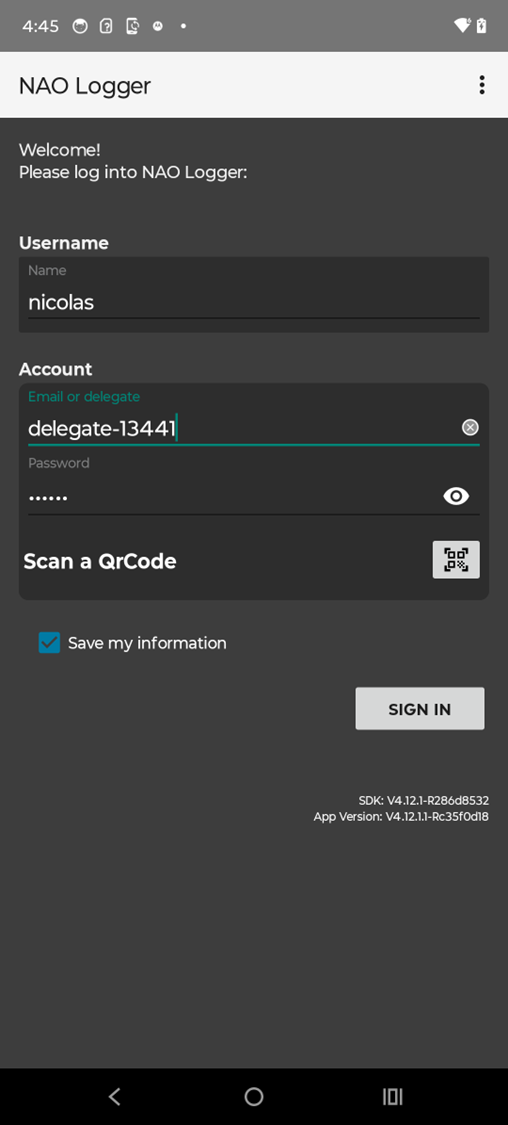

1. Open the NAO Logger app and sign in.

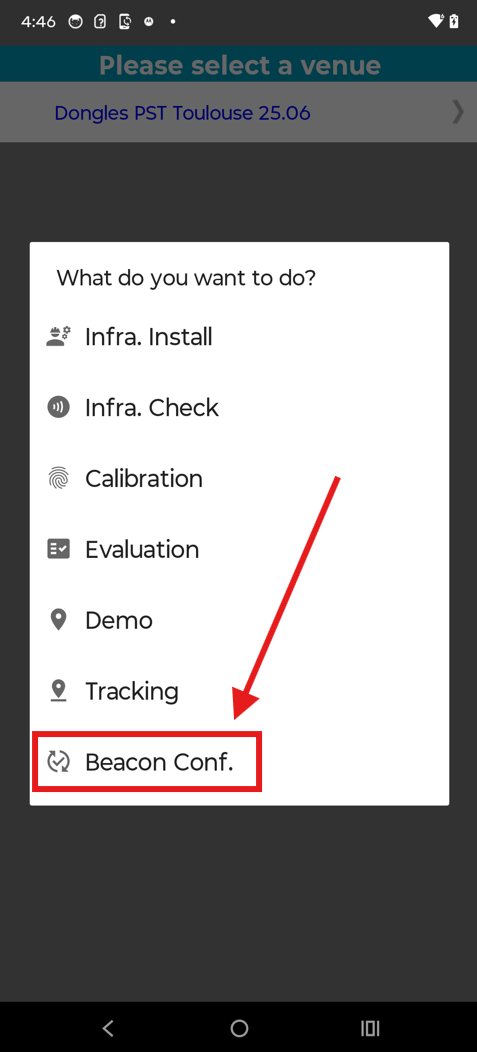

1. Select Beacon Conf.

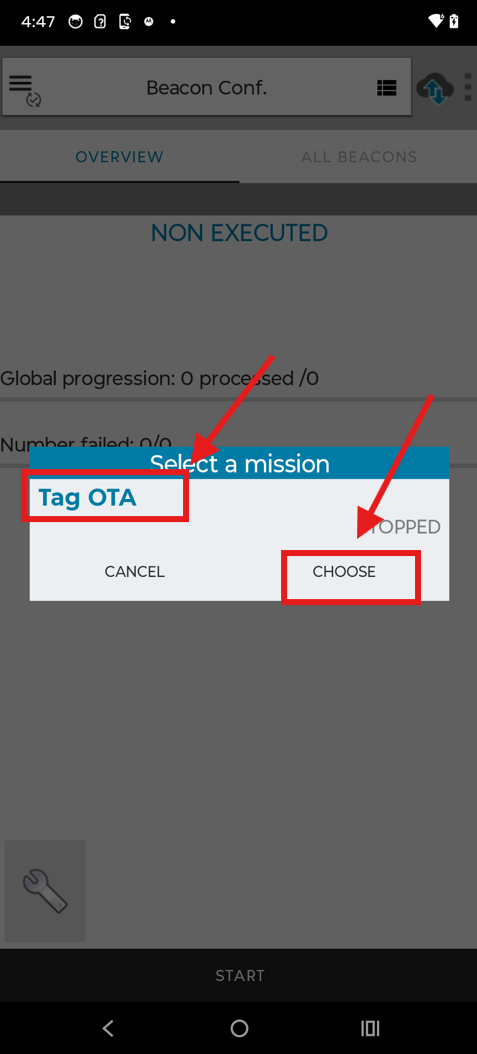

1. Tap Tag OTA, then choose the configuration.

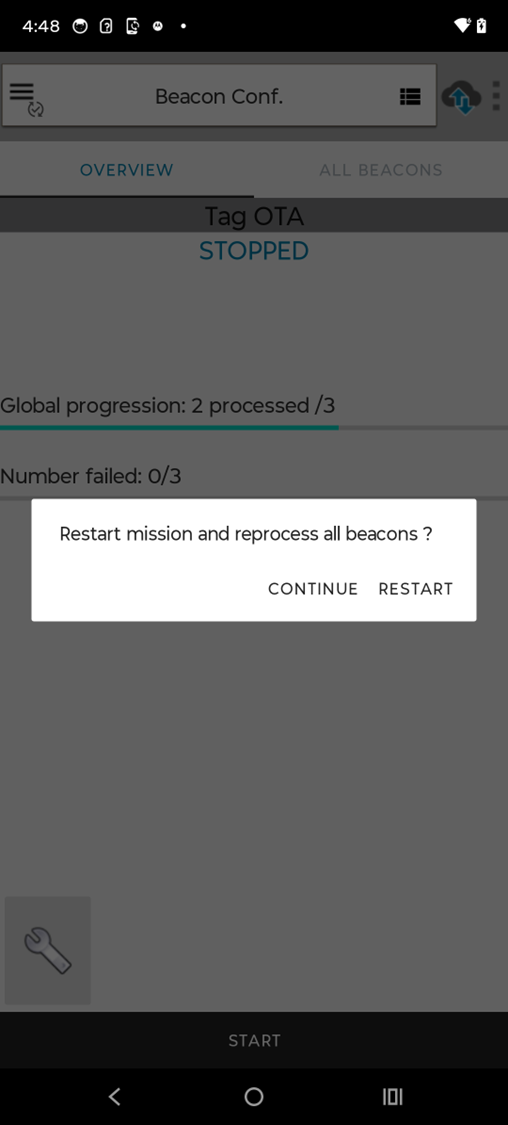

1. Click Continue or Start.

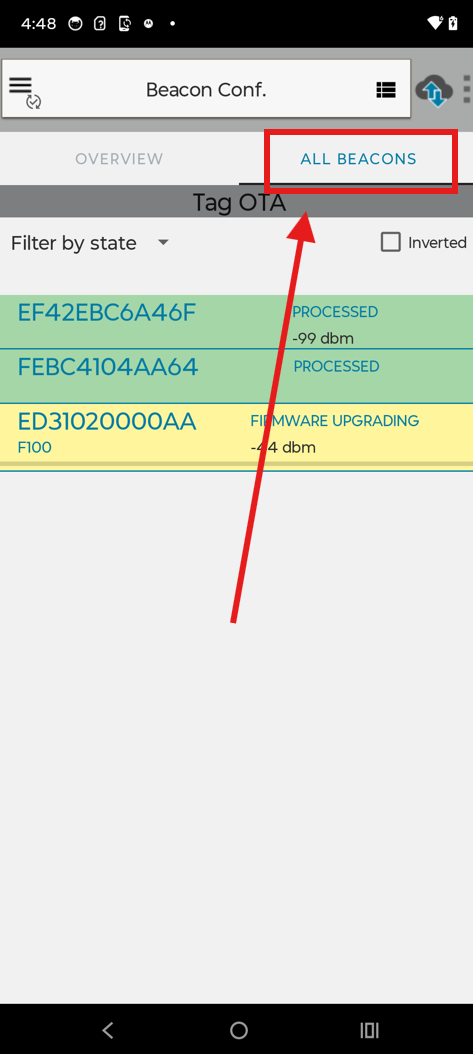

1. Select All Beacons to view the tag list.

1. Gray – Not detected
2. Blue – Detected / Connecting

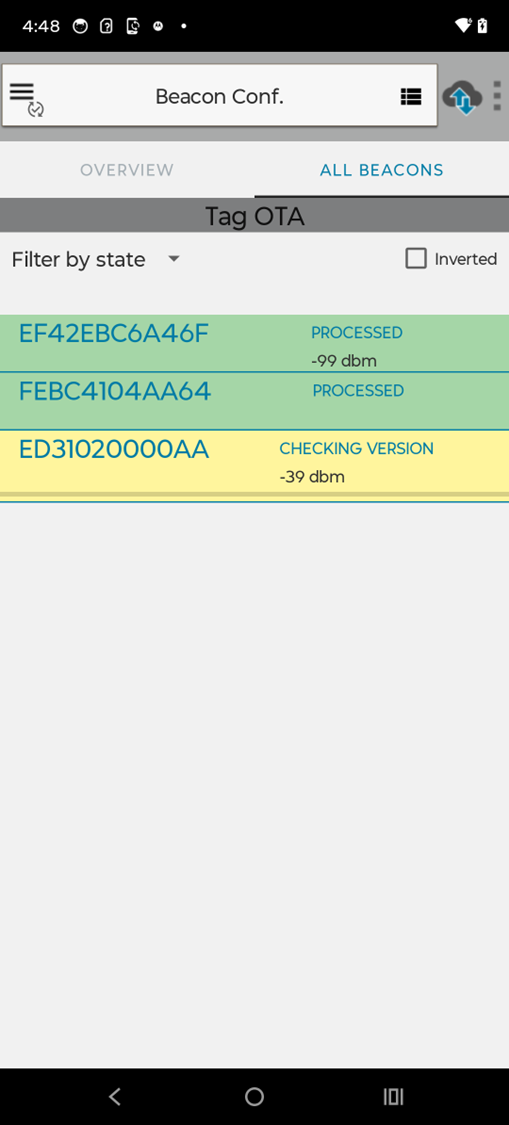

3. Yellow – Configuration is being applied
4. Green – Configuration successfully applied

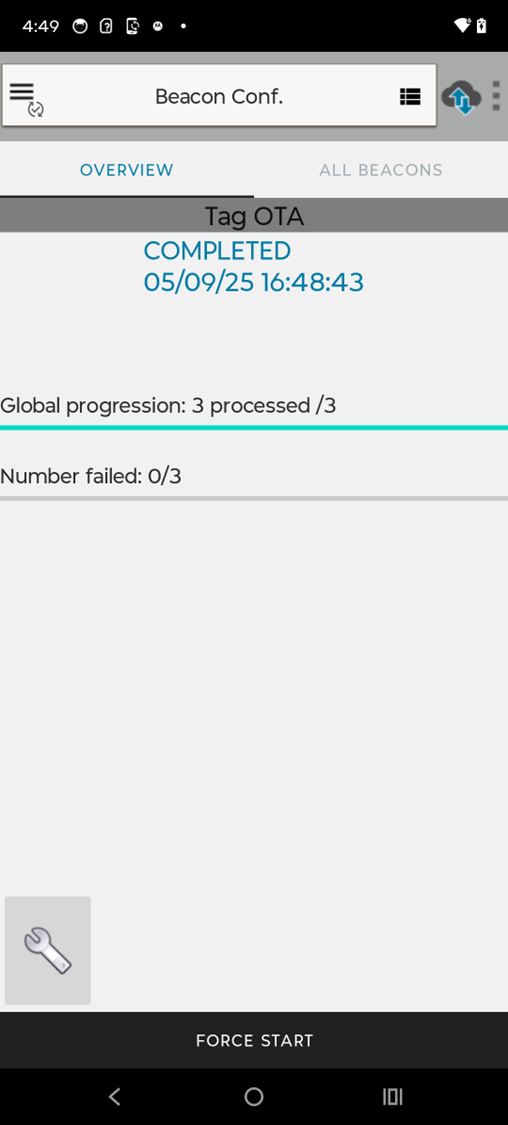

1. Once the mission is complete, return to NAO Cloud.
2. Go to Tag Tracking > Tracked Devices.

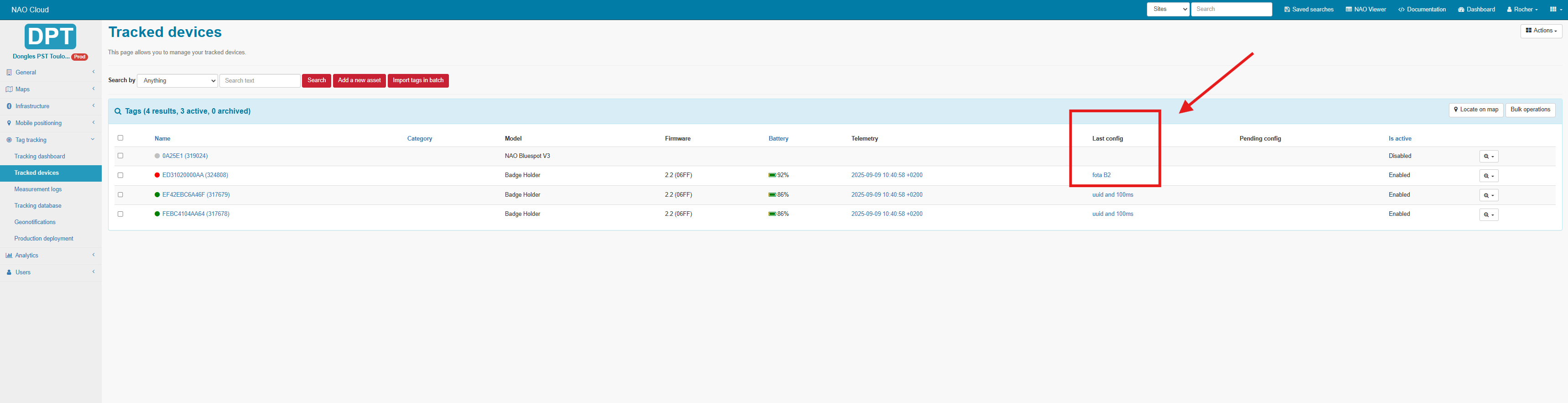

3. The applied configuration will now be displayed in the Last Config column.

You have successfully applied a configuration to a Tag using NAO Logger.
