Download process and outcome scenarios
Downloading data
When clicking on a tag in the list, download will start. The image below shows the download panel :
After a few moment, 3 types of outcome may occur
Scenario 1 : no position found and no record downloaded
When the panel changes to red, it means nothing has been downloaded.
You need to manually close the panel, the tag you selected is automatically deselected.
You need to manually close the panel, the tag you selected is automatically deselected.
Scenario 2 : only position or records has been downloaded
In this case, the panel turn to orange. Only location OR records has been found in the request.
We can see in the image below that only positions has been downloaded. No records has been found.
We can see in the image below that only positions has been downloaded. No records has been found.
Scenario 3 : both positions and records have been downloaded
In this scenario, the panel is closed automatically, and position should be visible on the map.

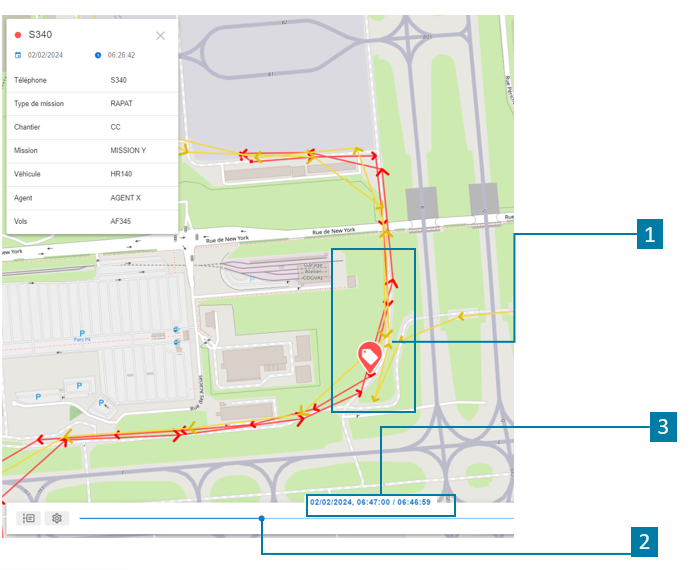

As seen on the image above(1), the location history path is drawn on the map. Each position is connected to the next one, make a "line-arrow-line" shape, showing the moving direction of the tag.
